3 Way Motorized Ball Valve 220V 12V 24V 3-Wire 2 Point Control Brass Electric Ball Valve
  • 3 Way Motorized Ball Valve 220V 12V 24V 3-Wire 2 Point Control Brass Electric Ball Valve
  • 3 Way Motorized Ball Valve 220V 12V 24V 3-Wire 2 Point Control Brass Electric Ball Valve
  • 3 Way Motorized Ball Valve 220V 12V 24V 3-Wire 2 Point Control Brass Electric Ball Valve
3 Way Motorized Ball Valve 220V 12V 24V 3-Wire 2 Point Control Brass Electric Ball Valve

Specification

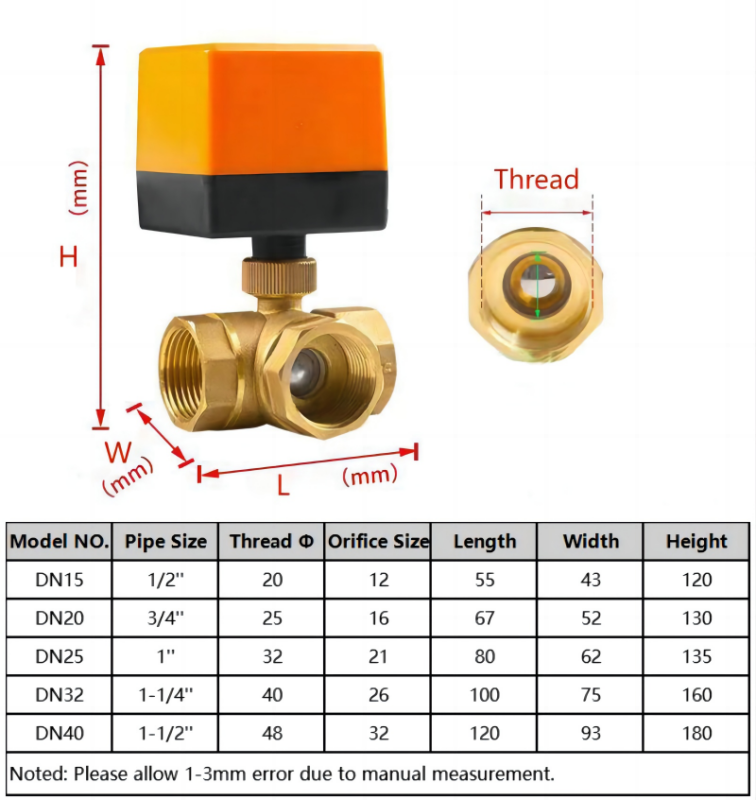

Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Medium: Cold/hot water, 60% Ethylene Glycol

Material: Brass
Power Supply: AC220V, DC12V, DC24V, AC24V, AC110V
Structure Forms: Three Ways,

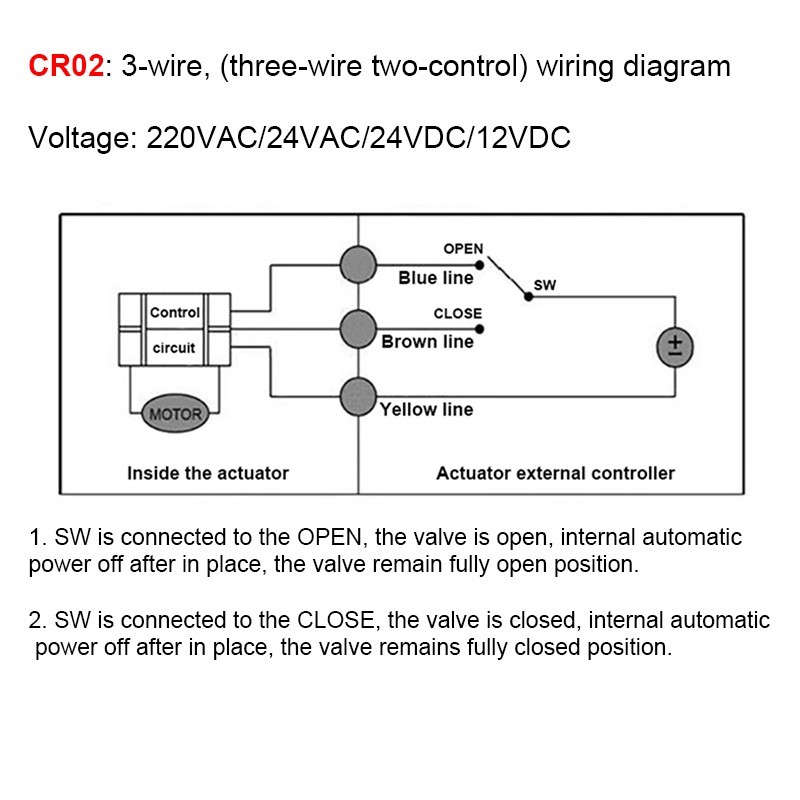

Operation Mode: CR02(Three Wire Two Ways Control), CR03(Three Wire One Ways Control)
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread

Product description
